Ventilation system BreezMe HP series

Mycond BreezMe HP with built-in heat pump is a factory-prepared device with a reversible heat pump system. The proper configuration of the rotary heat exchanger combined with the heat pump creates an optimized heat recovery system, ensuring optimal efficiency in both heating and cooling functions. The equipment also includes EC motors, Mini-Pleat or pocket filters, and an integrated Plug&Play automation system.

Gaisa plūsmas ātrums: 1200 ... 7500 m3/h

Vēlaties iegādāties vai jums ir jautājumi?

MyCond BreezMe HP Heat Pump Functions

Heat Pump Functions

Cooling of supply air in summer

Reduction of heating costs for supply air during other periods of the year

Convenient Transport, Quick Installation

The unit is divided into complete functional modules that are convenient for transport and easy to assemble independently

MyCond BreezMe HP Convenient Transport, Quick Installation

MyCond BreezMe HP High Energy Efficiency

High Energy Efficiency

High-performance sorption rotary regenerator provides excellent heat and moisture recovery

Installation of multi-row condensers and evaporators on both sides of the regenerator ensures the most efficient operation of the heat pump

Easy Startup

Multifunctional automation integrated with the central unit – configured and ready to work

MyCond BreezMe HP Easy Startup

MyCond BreezMe HP Optimal Matching

Optimal Matching

Factory matching of heat pump components and ventilation unit components

Manufacturer's warranty for the final product of the central unit and heat pump

Data from the central base

Size of the control panel	Nominal efficiency	Performance range	Height	Width	Height of channel connection	Width of connection to channel
Units	m³/h	m³/h	mm	mm	mm	mm
MVS021c	2100	1200-2100	991	967	345	860
MVS030c	3000	1500-3000	1255	967	480	860
MVS040c	4000	2000-4000	1255	1174	480	1065
MVS055c	5000	2500-5500	1525	1345	615	1235
MVS075c	7500	3750-7500	1765	1486	735	1380

MyCond BreezMe HP models and performance from 1200 to 7500 m³/h

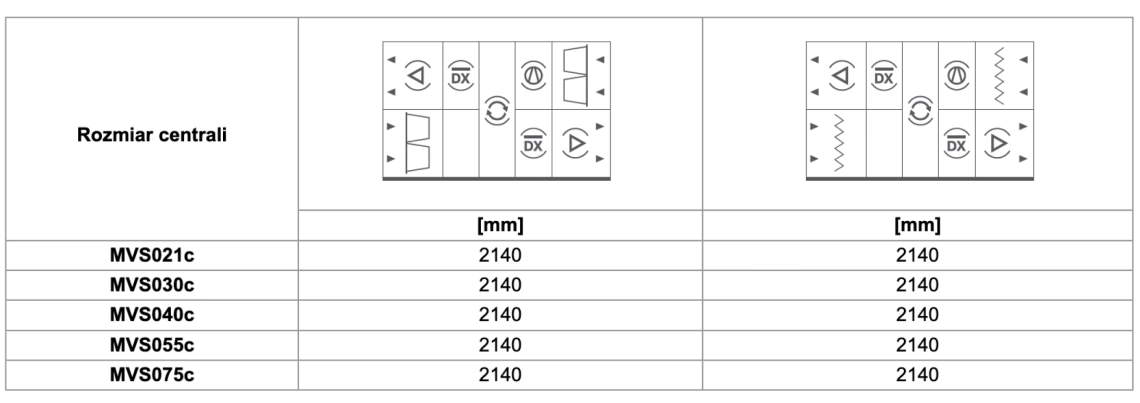

Base Unit Lengths

MyCond BreezMe HP Base Unit Lengths
